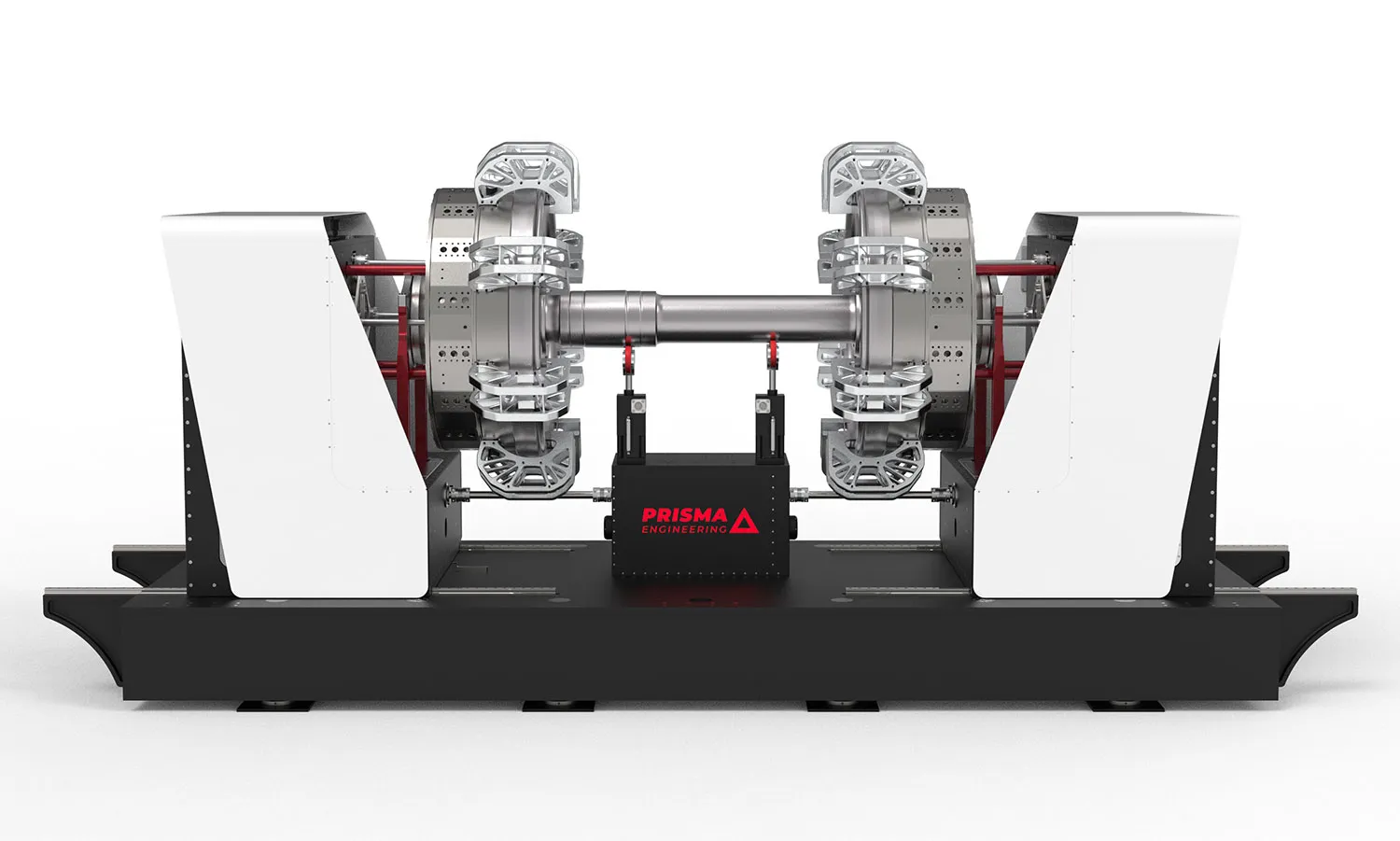

PRISMA SinusJet GEN 4.0
for Railway Wheelsets
- Testing of bending (EN 13262) and torsion, either simultaneously or separately
- Short response time for highly demanding dynamic issues (including crack propagation tests)
- Testing of series wheelset geometries with axle diameters up to 285 mm
- High testing speed up to 50 Hz (torsion) and 60 Hz (bending)
- Modular mechanical design
- No foundation required
Discover the SinusJet GEN 4.0
Unparalleled Testing Capacity
Testing for Bending and Torsion
The SinusJet GEN 4.0 offers advanced capabilities: bending tests
according to EN 13262, torsion tests, or combined loading with
separate control for both natural modes.
Shortest Possible Response Time
The intelligent electronic control enables testing of rapidly changing
load scenarios (including crack propagation tests).
High Compatibility

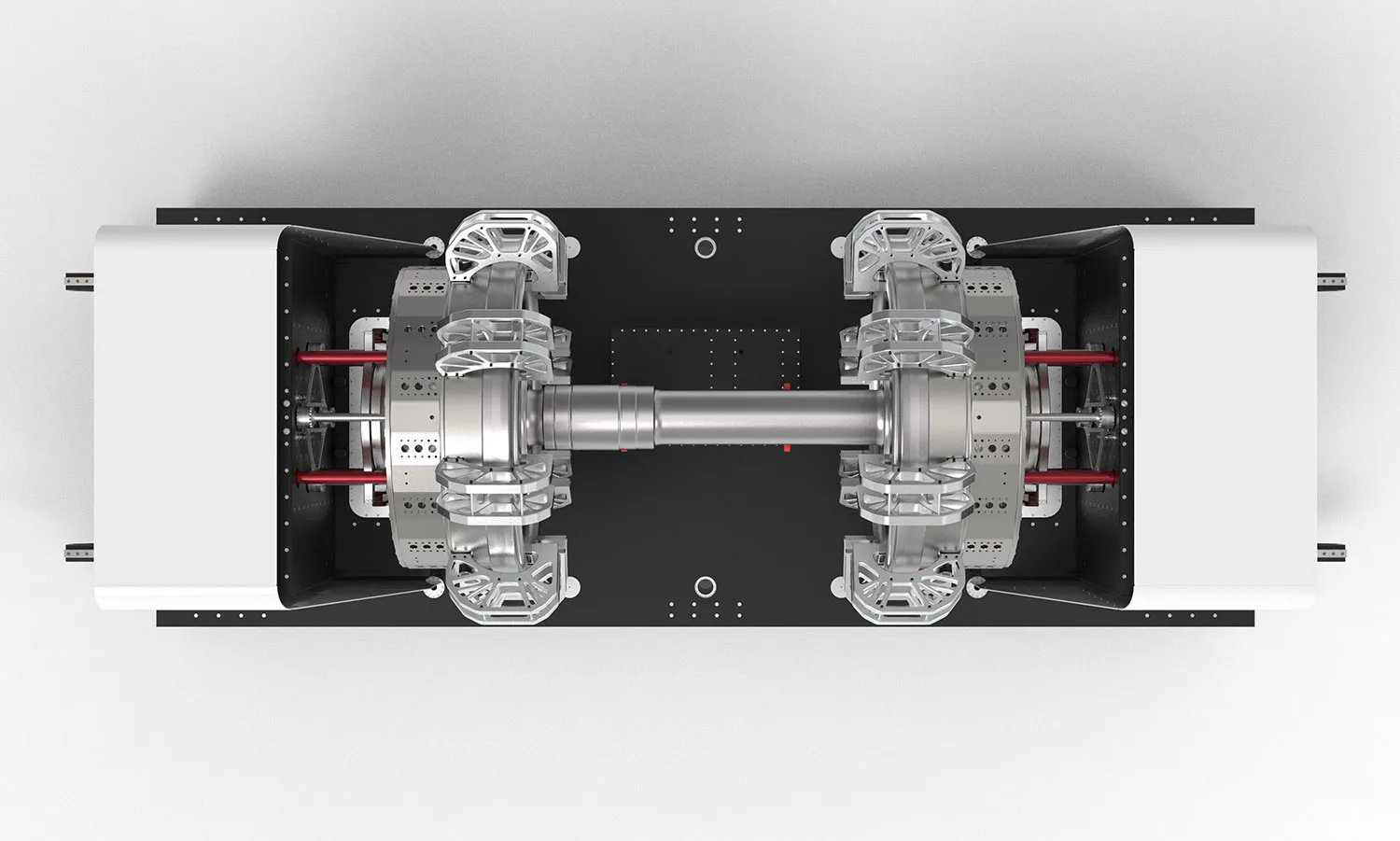

Floating Specimen Design
The horizontal and symmetrical design of the test stand allows for
testing both sides of the specimen simultaneously, without
interruption or the need for reconfiguration between tests.
Innovative Clamping System
The innovative clamping system enables quick and easy specimen
changes. The specimens themselves do not need to be machined or
equipped with special clamping discs. The machine is compatible with
standard wheelsets that meet their final specifications.
Speed and Efficiency
High Testing Frequencies
The ideal frequency range of the SinusJet GEN 4.0 is between 40–60 Hz.
Economical Operation
All specimens are excited close to their natural bending and torsion
frequencies. This allows the test stand to generate the highest
dynamic loads with low motor power (10 kW max.). The maximum test
moment is 250 kNm (bending) and 100 kNm (torsion).
