PRISMA SinusJet CTS
for Crankshafts
- Testing for bending or torsion up to 75 Hz
- Compatibility with single crank pieces or complete crankshafts
- Mechanical clamping up to 190 mm bearing diameter
- Easy operation and swift sample change
- Lightweight, fully mechanical design
- No foundation required

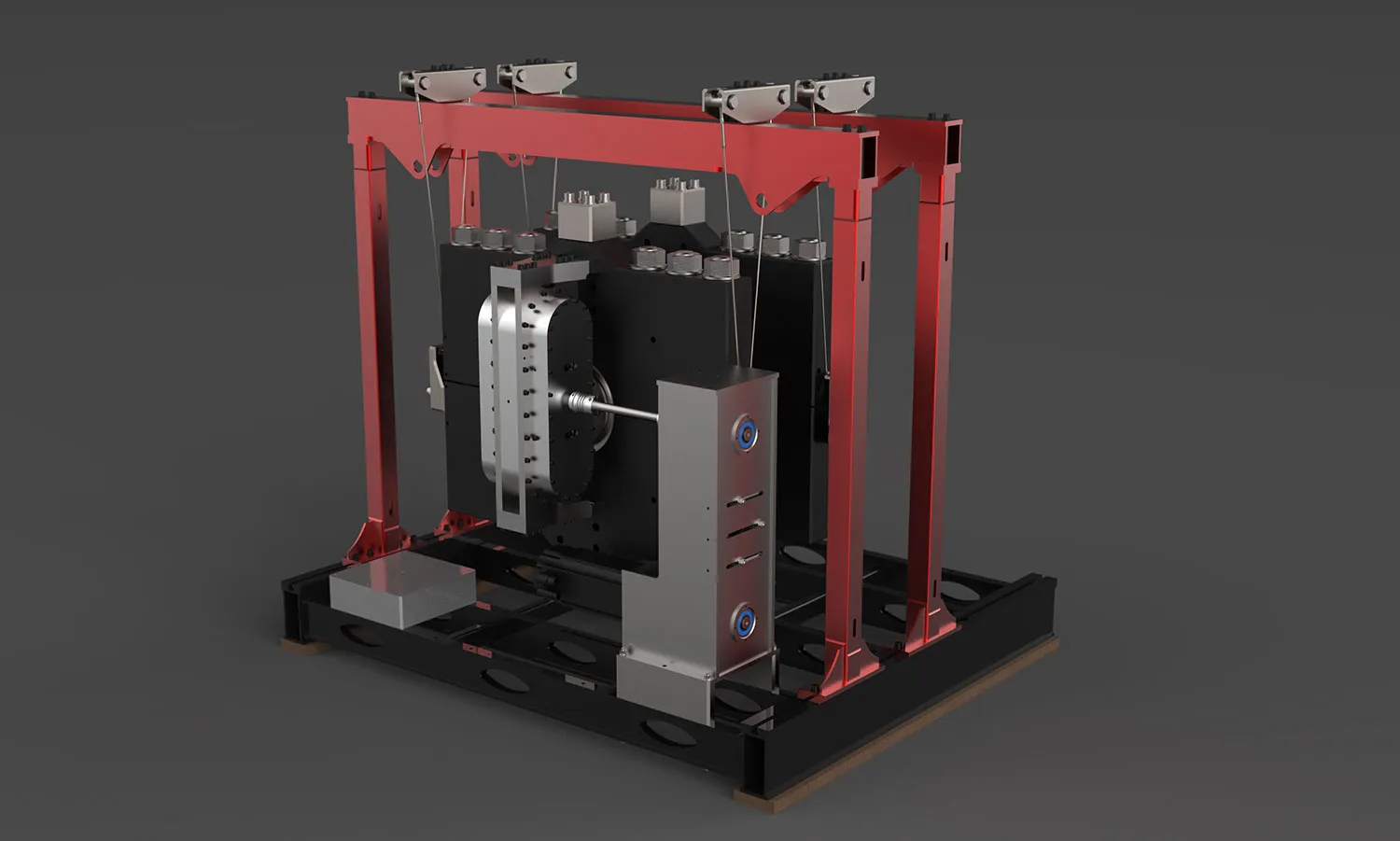

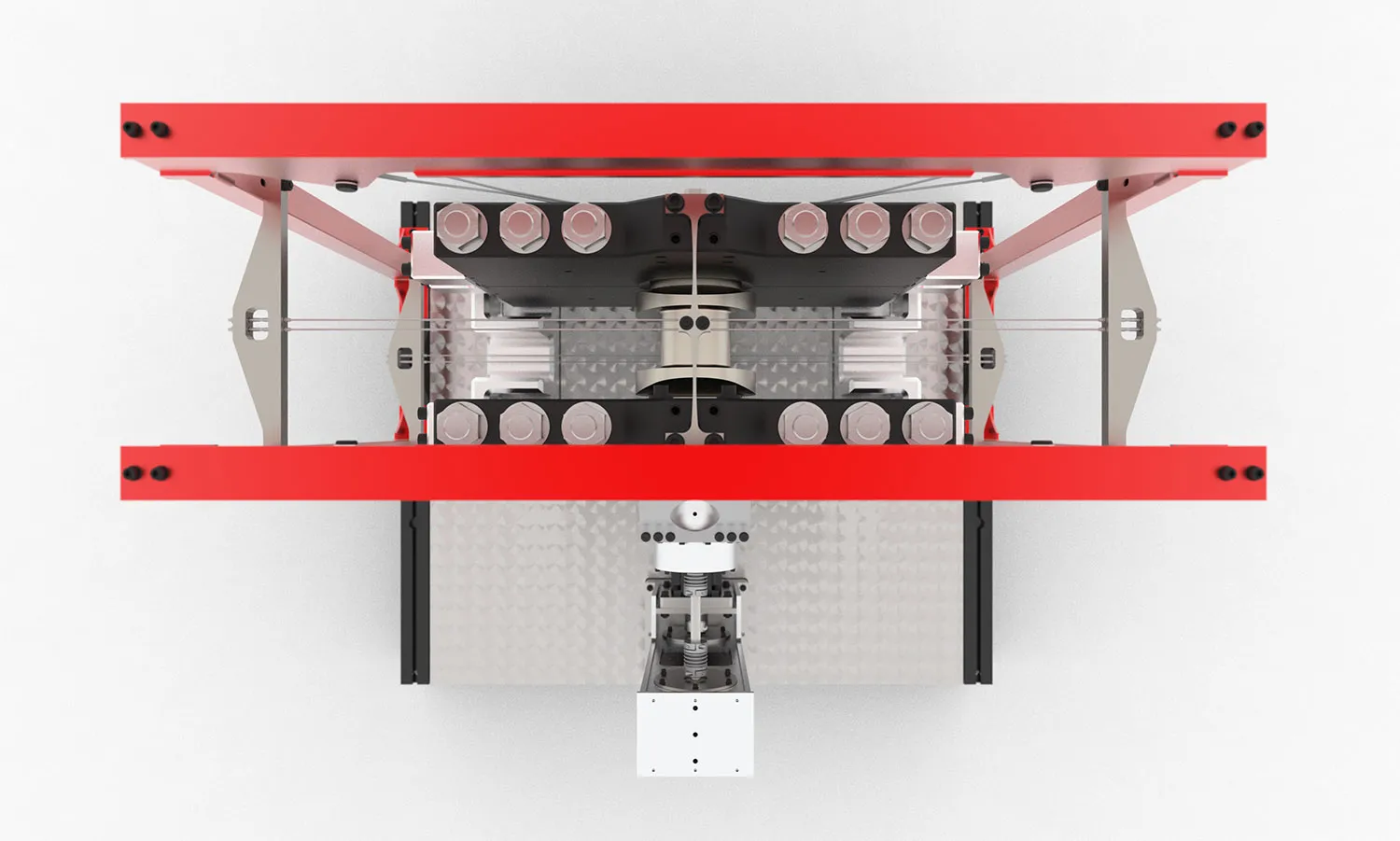

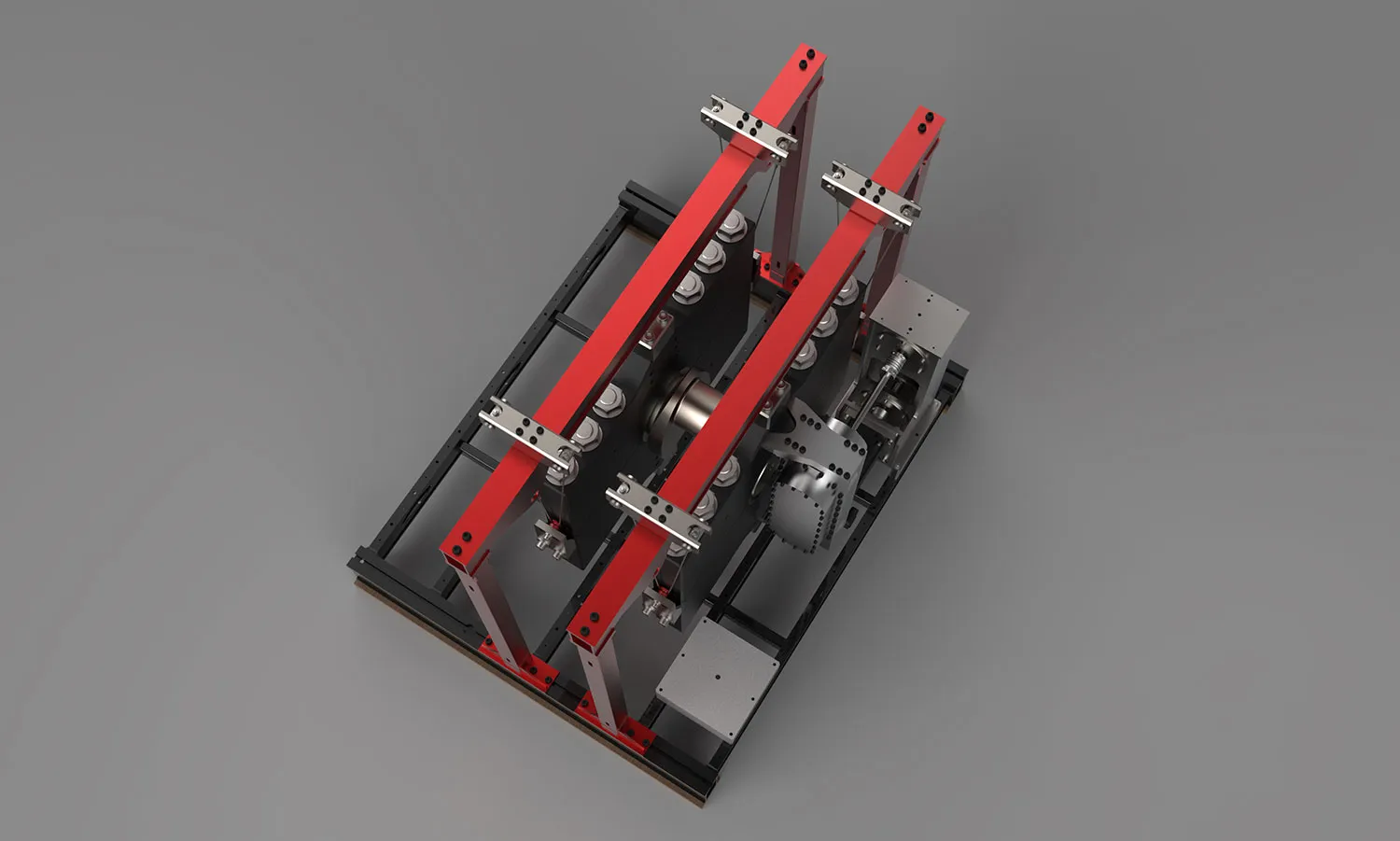

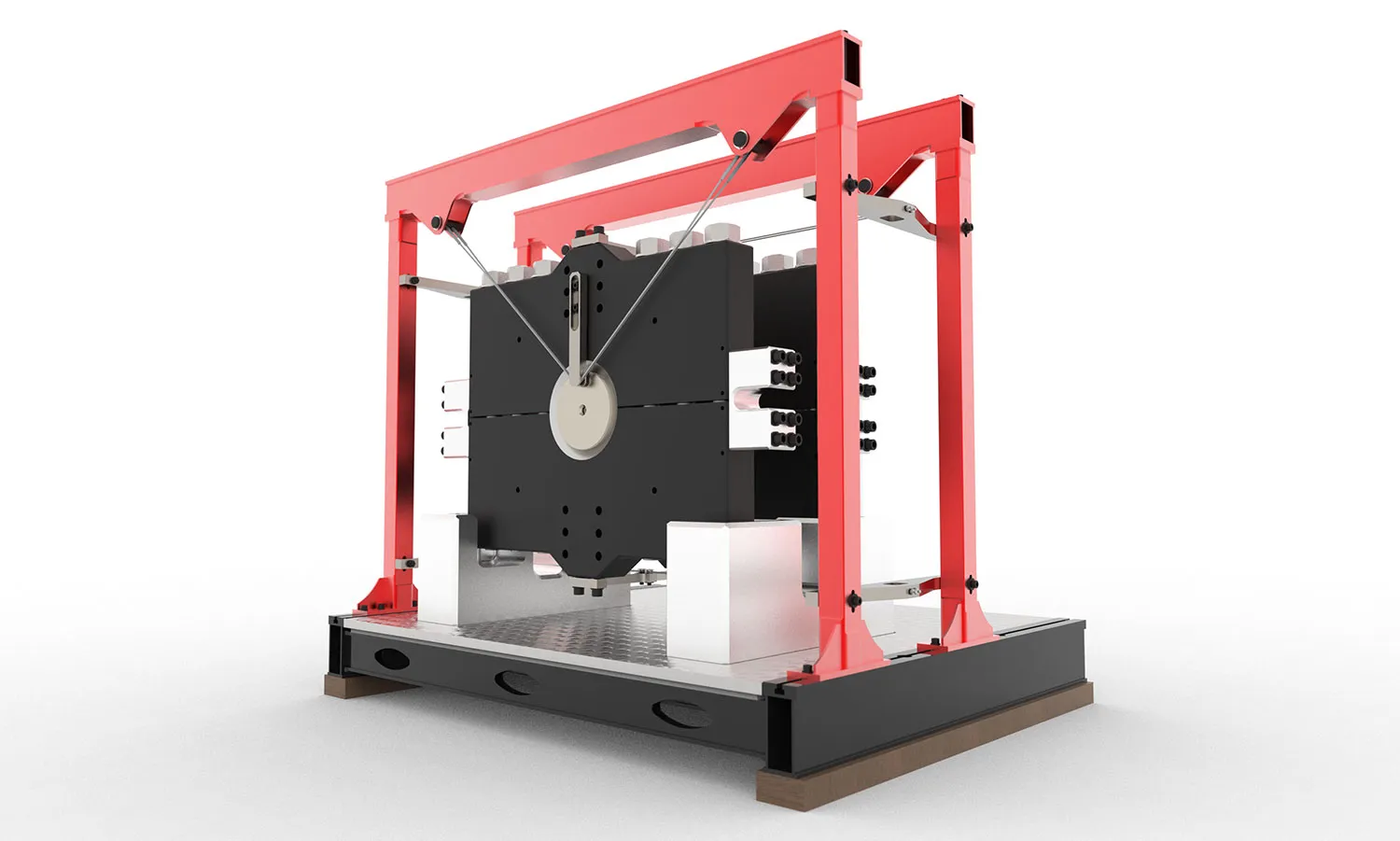

Discover the SinusJet CTS
Do More with Less
Multifunctionality
The SinusJet CTS testbed offers dual functionality when it comes to
crankshaft testing: the actuator and the vertical frame system are
adjustable to allow both bending and torsional tests.
Fully Customizable Test Scenarios
Simple and intuitive definition of load cases and scenarios through
the easy-to-use electric control unit, up to 50 kNm of bending and 100
kNm torsional load.
Opportunities in Flexibility
Probe Configuration
Depending on the target of the tests, the probes can be prepared as
single or multiple crank pieces as well as complete crankshafts up to
1,000 mm in length.
Secure and Interchangeable Clamping Rings
For enhanced compatibility the testbed is equipped with
interchangeable clamping rings in order to support a wide range of
bearing diameters. The effective range of clampable diameters is 75 mm
to 180 mm.
Simplicity and Efficiency
Easy Operation
The SinusJet CTS was designed with simple handling in mind: the
support system and the mechanical actuator are arrangeable to
accommodate different sizes of probes in the shortest time possible.
Mechanical Design
The SinusJet CTS testbed uses a tried and tested mechanical approach
to deliver high bending or torsional loads with a relatively low
excitation moment using a single actuator and a 9 kW electric motor.
